Description

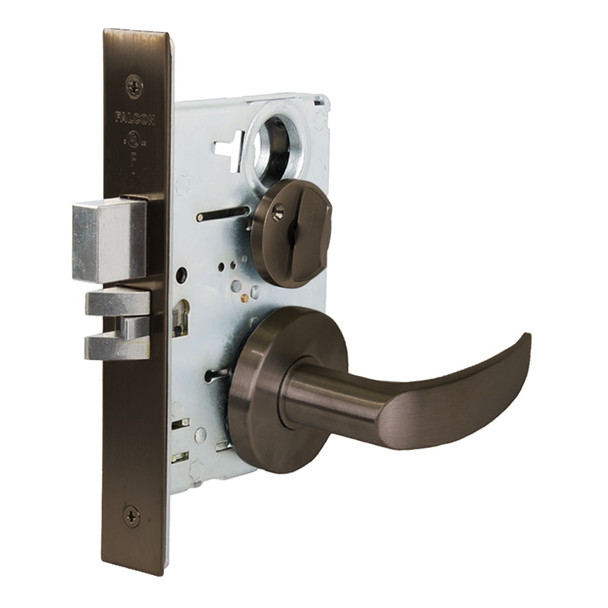

The Falcon MA521L AG 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education facilities. This durable ANSI/BHMA Series 1000 lock combines a mechanical anti-friction latch, 1-inch throw deadbolt with saw-resistant rollers, and interchangeable core (IC) capability for effortless re-keying without removing the lock from the door.
The MA Series accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset, features a cold-formed steel case with bind-resistant trim, and works with SFIC cylinders from other manufacturers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin on IC
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Options: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label, ANSI A115.1
