Description

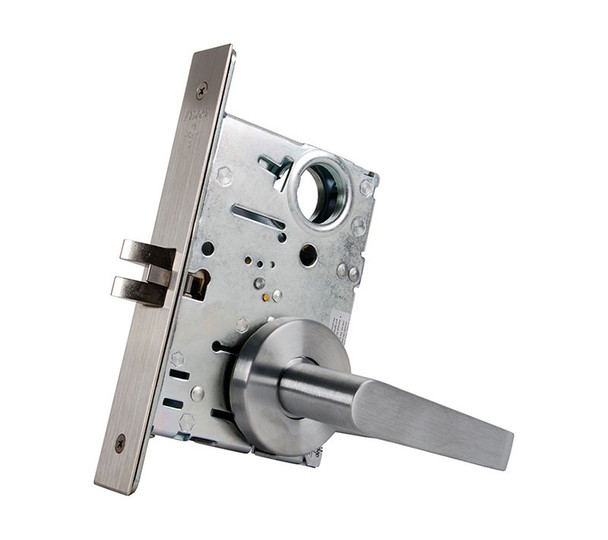

The Falcon MA521L DG mortise lock delivers high-performance security for commercial buildings including offices, hospitals, and educational facilities. Built for constant use, this tough, dependable lock features a mechanical anti-friction latch bolt and a 1-inch stainless steel deadbolt with saw-resistant rollers. Its interchangeable core design allows quick field re-keying without removing the lock from the door.
The MA521L accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is fully reversible for either hand. ANSI/BHMA Series 1000 certified and UL 3-hour labeled, this lock meets commercial security standards. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, finish selection, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for specifications and support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keys: Two nickel silver keys supplied
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
