Description

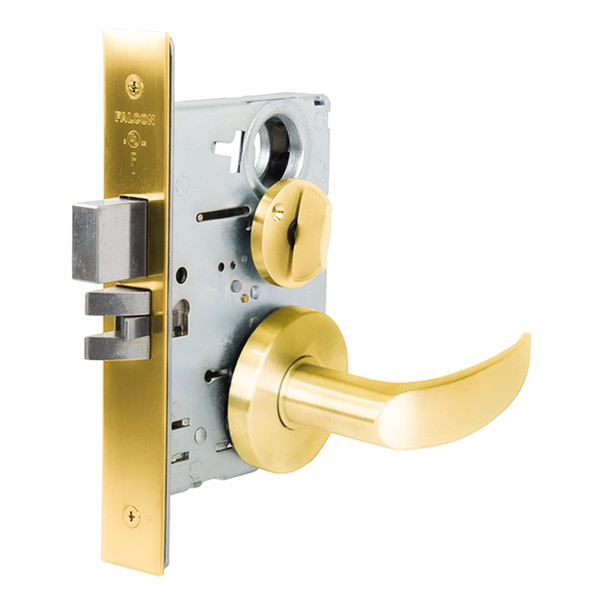

The Falcon MA521P AG 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines a mechanical anti-friction latch with a 1-inch stainless steel deadbolt and saw-resistant rollers, delivering dependable security for constant-use doors without fail.
The MA521P features an interchangeable core (I/C) cylinder compatible with SFIC products, enabling quick field re-keying and future maintenance without lock removal. It accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets UL 3 Hour A fire-rated requirements. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying setup and installation guidance from an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: MA521P AG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with roller guards
- Cylinder: Solid brass, 6 or 7-pin I/C
- Keyway: "A" keyway standard on I/C cylinder
- Handing: Right hand standard, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available in 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 Hour A
