Description

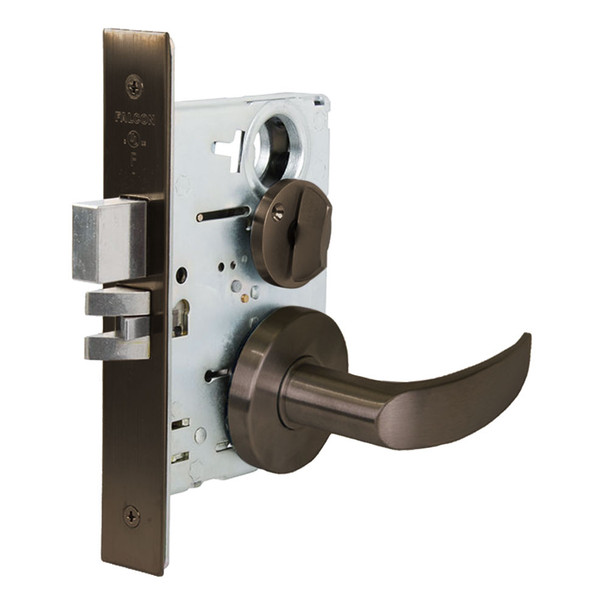

The Falcon MA521P AG 613 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and schools. Featuring a 1-inch deadbolt with saw-resistant rollers and a mechanical anti-friction latch, this lock delivers reliable security and durability through constant use. Its interchangeable core (SFIC-compatible) enables fast re-keying without removing the lock body.
This mortise lock fits standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field for either-hand installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact our sales team at sales@edlocks.com or call 1-877-207-6067 for technical support or to discuss your project needs.
Specifications
- Brand: Falcon (Allegion)
- Model: MA521P AG 613
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch: 3/4" projection, two-piece stainless steel
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G (standard cylinder), A (IC cylinder)
- Handing: Right-hand standard, left-hand optional, field-reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Finish: Satin Stainless Steel (AG)
- ANSI/BHMA: 156.13, Series 1000
- UL: 3-hour A label
- Electrified: Available in 12 or 24 VDC
- Includes: Two nickel silver keys
