Description

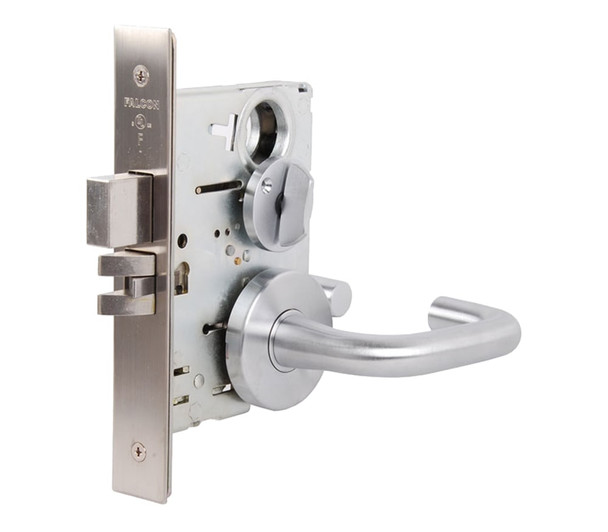

The Falcon MA521P mortise lock is a commercial-grade security solution designed for offices, hospitals, educational facilities, and high-traffic environments. Built on Falcon's proven MA Series platform, this lock delivers dependable performance and security with an interchangeable core (SFIC) that simplifies re-keying and maintenance without compromising strength or reliability.
The MA521P accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. It features reversible handing and optional electrified functions (12/24 VDC). As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
