Description

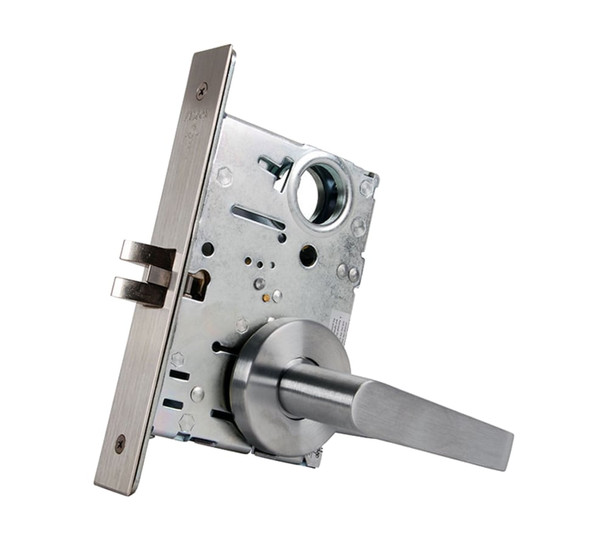

The Falcon MA Series mortise lock delivers high performance and dependable security for commercial office, hospital, and education environments. This tough, retrofit-ready lock features an interchangeable core (SFIC compatible) for quick re-keying, accommodates door thicknesses of 1-3/8" to 2-1/2", and is backed by Allegion's reputation for quality and durability.
The MA531CP6 DG 626 includes a 1" throw deadbolt with saw-resistant rollers, 3/4" stainless steel latch, and two nickel silver keys. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing options, or electrified configurations.
Specifications
- Brand: Falcon
- Model: MA531CP6 DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Projection: 3/4"
- Deadbolt Throw: 1"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 6-pin standard
- Keyway: G keyway (standard cylinder), A keyway (I/C cylinder)
- Finish: 626
- Handing: Right hand standard; left hand optional, reversible in field
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
