Description

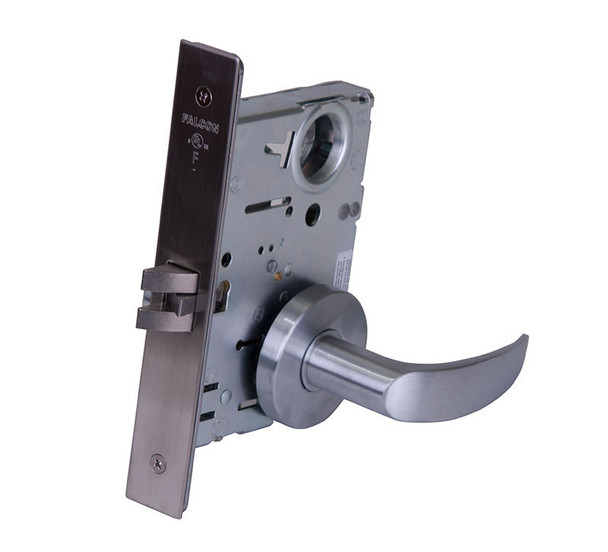

The Falcon MA531L AN 613 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This durable SFIC-compatible lock features an interchangeable core for quick re-keying, a mechanical anti-friction latch bolt, and a 1-inch throw dead bolt with saw-resistant rollers, solving the need for reliable security in high-traffic institutional settings.
The MA531L accommodates door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. Right-hand handing is standard; left-hand is available. As an authorized Falcon dealer, E.D. Locks provides expert support to ensure proper specification and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, and finish selection assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Standard Keyway: "G" (standard cylinder); "A" (interchangeable core cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI AII5.1
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Series 1000, meets ANSI/BHMA 156.13
- UL: 3 hour A label
