Description

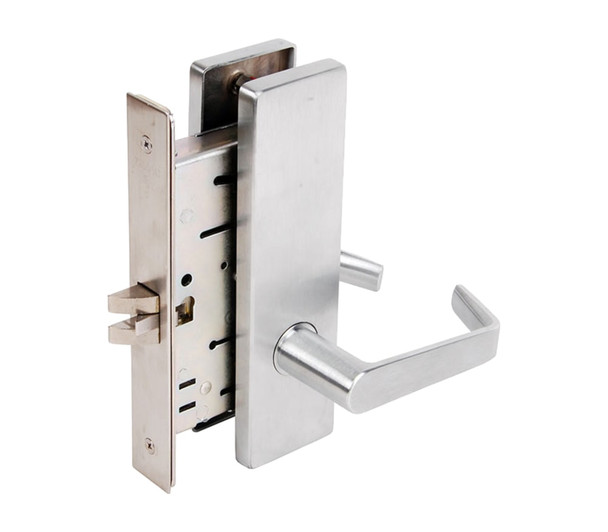

The Falcon MA531L DN 630 is a commercial mortise lock designed for high-traffic office, hospital, and education environments. This durable lock combines security with reliability, featuring an interchangeable core (SFIC compatible) for quick re-keying and a mechanical anti-friction latch bolt that withstands constant use without fail.
The MA531L fits standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. It's reversible in the field and available in multiple finishes. As an authorized Allegion dealer, E.D. Locks provides expert support for specification, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 with questions.
Specifications
- Brand: Falcon (Allegion)
- Model: MA531L DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin (standard) or 6, 7-pin (I/C)
- Hubs: Hardened steel
- Keyway: G (standard cylinder) or A (I/C cylinder)
- Handing: Right hand standard, left hand optional, reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Keys Furnished: Two nickel silver keys
