Description

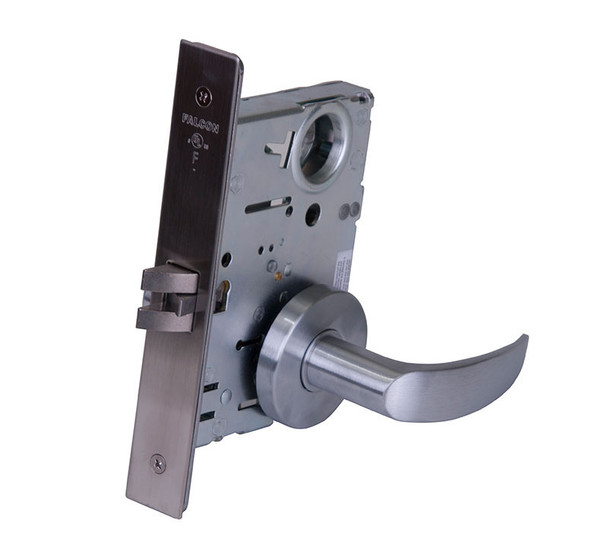

The Falcon MA531P AG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable ANSI Series 1000 lock combines security with reliability, featuring a two-piece stainless steel latch, 1-inch dead bolt with saw-resistant rollers, and heavy-duty through-bolted trim for consistent performance under constant use.
The MA531P accommodates standard door thicknesses of 1-3/8 to 2-1/2 inches and ships with an interchangeable core (SFIC compatible) for easy field re-keying without removing the lock. Right-hand handing is standard; left-hand is available and reversible. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions (12/24 VDC), and finish selection. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keys: Two nickel silver keys furnished standard
- Keyways: G keyway (standard cylinder); A keyway (I/C cylinder); optional keyways available
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with 13/16 inch hardened steel saw-resistant rollers
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL: 3-hour A label
