Description

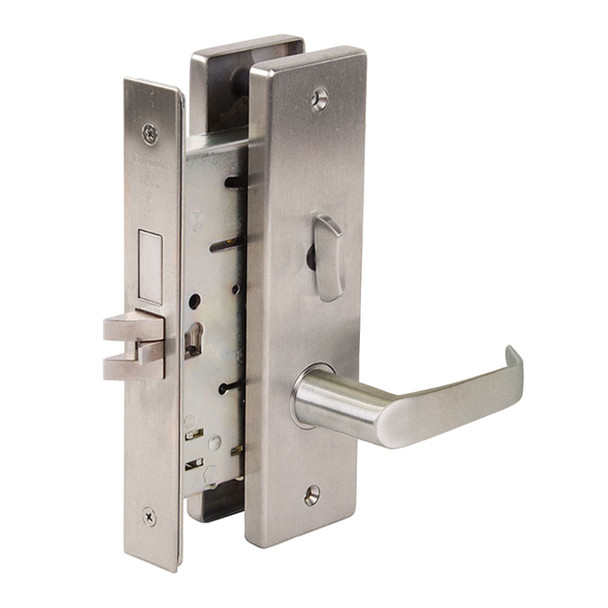

The Falcon MA541CP6 mortise lock delivers commercial-grade security for offices, hospitals, educational facilities, and high-traffic environments. This heavy-duty lock combines durability with affordability, engineered to withstand constant use while maintaining reliable performance. Its interchangeable core design enables quick re-keying without removing the lock from the door.
Fits standard door thicknesses of 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset. The lock is compatible with SFIC products and available in multiple configurations including electrified versions (12 or 24 VDC). As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized product support.
Specifications
- Door thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold-formed steel, zinc dichromate plated, 0.090 inch thick
- Latch bolt: Two-piece stainless steel, 3/4 inch projection
- Dead bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C available
- Keyways: G keyway standard; A keyway on I/C cylinder
- Standard keys: Two nickel silver keys included
- Handing: Right hand standard; left hand reversible in field
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
