Description

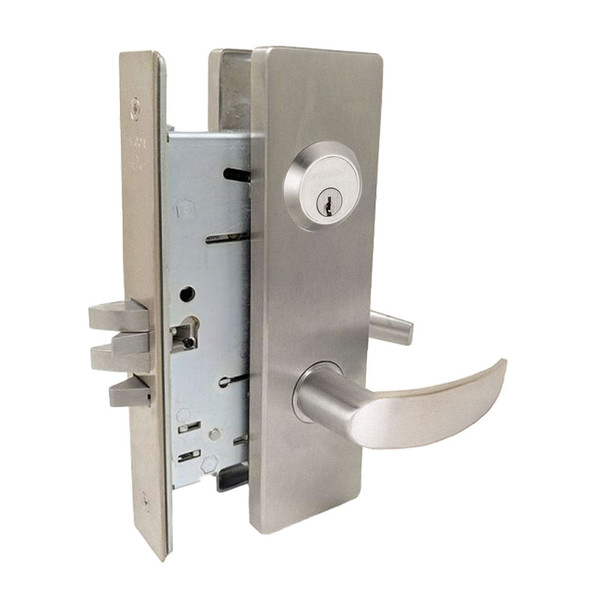

The Falcon MA561CP6 mortise lock is a heavy-duty commercial lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Its two-piece stainless steel latch bolt, saw-resistant roller deadbolt, and cold-formed steel case deliver reliable security and durability under constant use without compromise.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and features an interchangeable SFIC core for quick re-keying. Right-hand handing is standard; left-hand and field-reversible options available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, compatibility, and authorized dealer support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561CP6 AN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available (6 or 7-pin on I/C)
- Keyways: G-keyway standard; A-keyway on I/C cylinder
- Hubs: Hardened steel
- Faceplates: 1-1/4" x 8", adjustable for door bevel
- Handing: Right-hand standard, left-hand optional, field-reversible
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3-hour A label
