Description

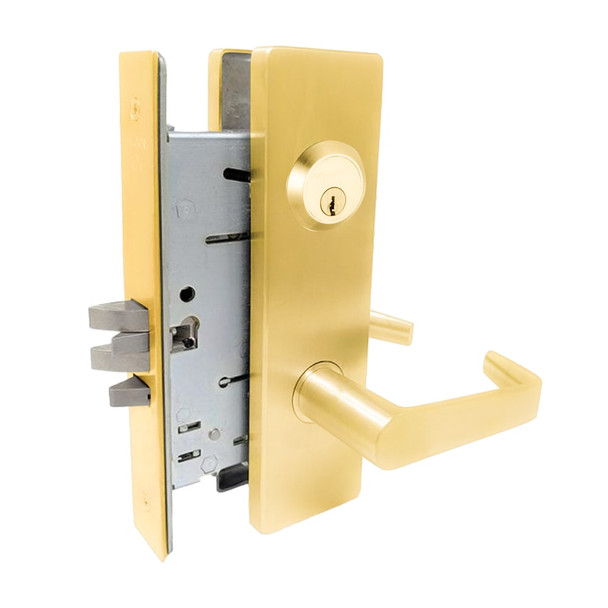

The Falcon MA Series mortise lock delivers dependable security for commercial offices, hospitals, educational facilities, and institutional buildings. Built for constant use, this heavy-duty lock features a two-piece stainless steel latch bolt, 1-inch dead bolt with saw-resistant rollers, and cold-formed steel construction. It solves the need for affordable, reliable access control in high-traffic environments.
Compatible with 1-3/8-inch to 2-1/2-inch door thickness and available with standard or interchangeable cores for quick re-keying. Handing is reversible in the field. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, finish selection, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for detailed specifications and custom configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561CP6 DN 605
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin SFIC available
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, adjustable for bevel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA Rating: 156.13 Series 1000
- UL Rating: 3 hour A label
- Includes: Two nickel silver keys
