Description

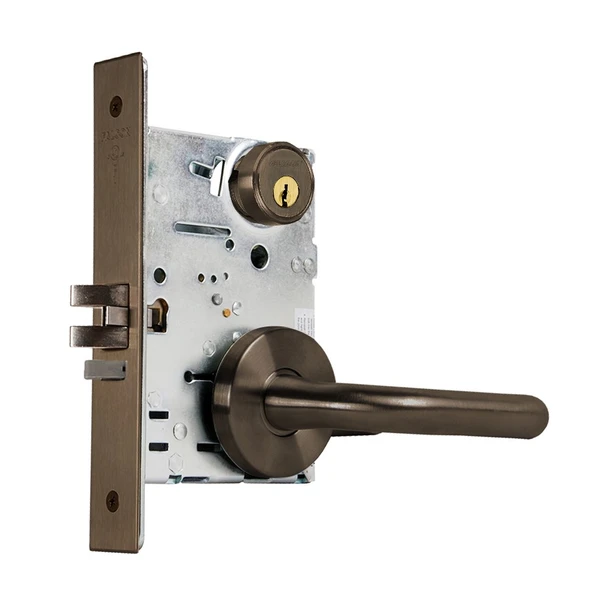

The Falcon MA561CP6 mortise lock is a heavy-duty commercial lock designed for offices, hospitals, schools, and other high-traffic facilities. Built for constant use without fail, this Series 1000 lock combines security with dependable performance and an interchangeable core (SFIC-compatible) that enables fast re-keying and maintenance in the field.
Fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset. The 613 finish (satin stainless steel) resists corrosion in demanding environments. Handing is reversible in the field. For keying options, compatibility questions, or expert guidance on your project, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561CP6 SG 613
- Type: Mortise lock with interchangeable core
- Finish: 613 (satin stainless steel)
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and reversible field-handing available
- Cylinder: Solid brass, 6-pin standard
- Keyway: G (standard cylinder), A (interchangeable core)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" armored, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified: 12 or 24 VDC options available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Supplied with: Two nickel silver keys
