Description

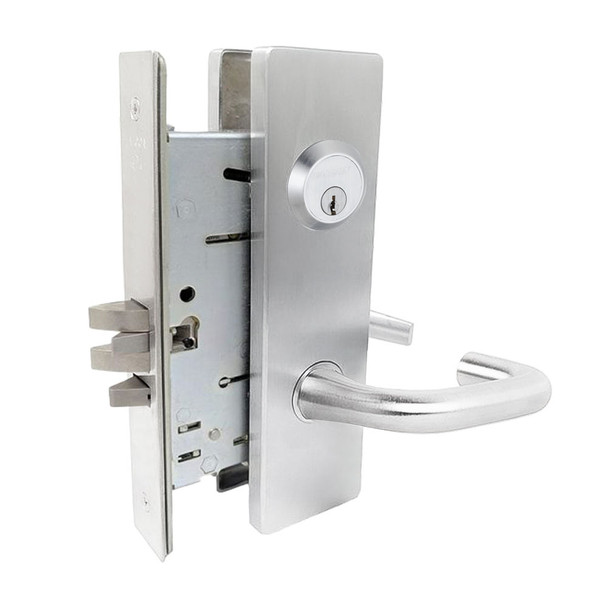

The Falcon MA Series mortise lock delivers dependable security for commercial buildings including offices, hospitals, and educational facilities. This heavy-duty lock withstands constant use without fail, featuring a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers. Perfect for retrofit projects, it accommodates door thicknesses from 1-3/8" to 2-1/2".
The MA561CP6 uses an interchangeable core (SFIC-compatible) for quick, tool-free re-keying and works with standard or optional keyways. Right-hand handing is standard; left-hand and field-reversible options are available. This lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL fire rating. As an authorized Falcon dealer, E.D. Locks provides expert support and keying guidance. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility assistance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561CP6 SN 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Finish: Satin Nickel (SN 626)
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Handing: Right-hand standard, left-hand and reversible optional
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Includes: Two nickel silver keys
