Description

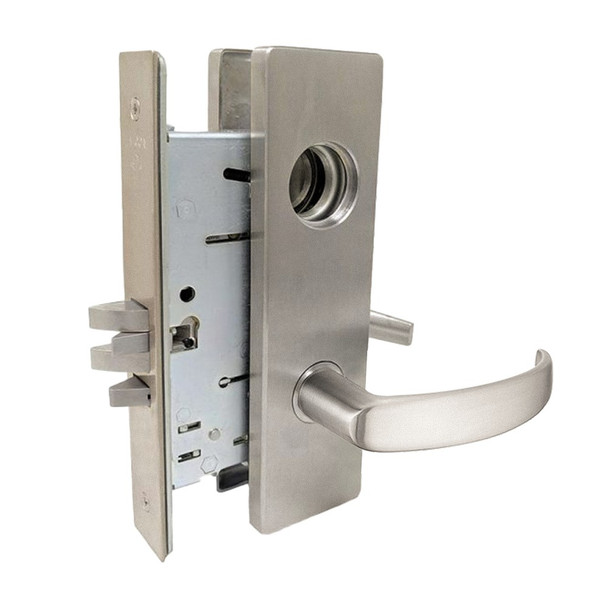

The Falcon MA561L QN 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. Built for durability and reliability, this Series 1000 lock combines security with low maintenance, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and ships with two nickel silver keys. It meets ANSI/BHMA 156.13 standards and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying options, and electrified configurations.
Specifications
- Brand: Falcon
- Model: MA561L QN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: G (standard) or A (interchangeable core)
- Handing: Right hand standard, left hand optional, reversible
- Electrified: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Strike: Brass or stainless steel, ANSI A115.1 compliant
