Description

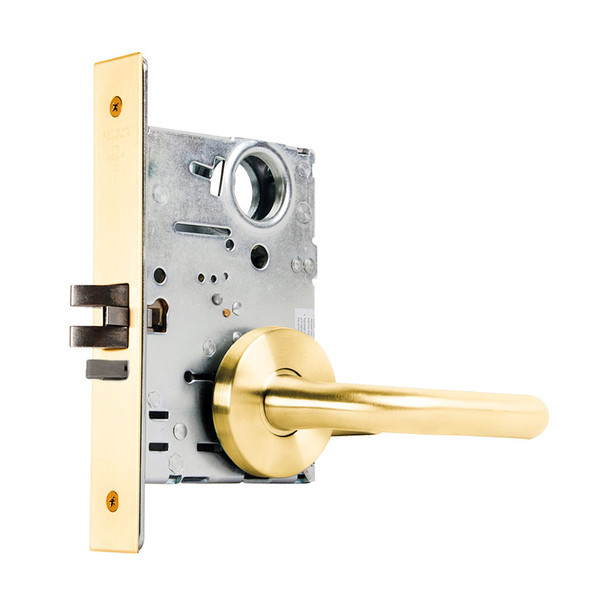

The Falcon MA561L SG 605 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch, 1-inch dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA561L accommodates standard door thicknesses from 1-3/8 inches to 2-1/2 inches with a 2-3/4-inch backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA561L SG 605
- Door Thickness: 1-3/8 inches to 2-1/2 inches
- Backset: 2-3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw with saw-resistant rollers
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard, A keyway on I/C cylinder
- Faceplates: 1-1/4 inches x 8 inches, brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Includes: Two nickel silver keys
