Description

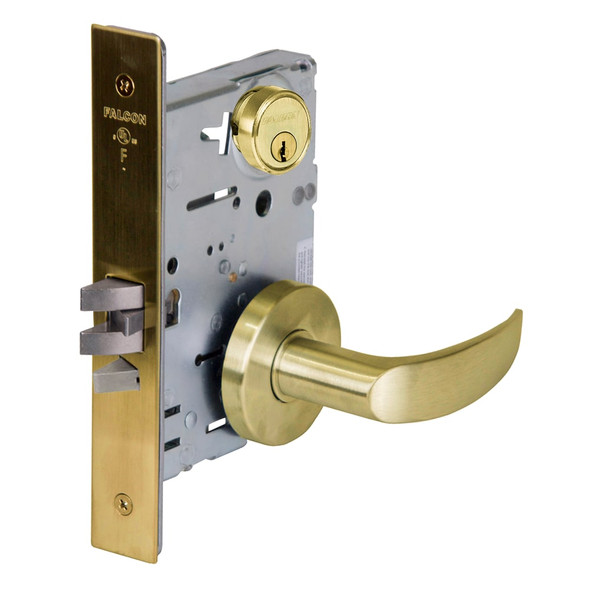

The Falcon MA561P mortise lock delivers high performance and security for commercial offices, hospitals, education facilities, and similar environments. Built to withstand constant heavy use without fail, this Series 1000 lock combines dependable operation with affordable cost, making it ideal for retrofit projects and new installations requiring reliable access control.
This lock features an interchangeable core (SFIC compatible) for quick re-keying and accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for specifications, pricing, and personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561P AN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Keying: G keyway (standard cylinder), A keyway (I.C. cylinder), two nickel silver keys included
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000, Meets 156.13
- UL: 3 hour A label
