Description

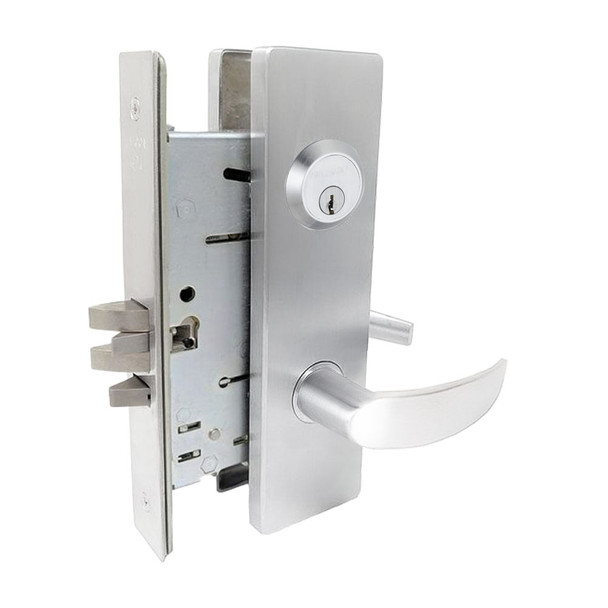

The Falcon MA561P mortise lock delivers dependable security for commercial office, hospital, and education environments. Built tough for constant use, this Series 1000 lock features a mechanical anti-friction latch bolt and 1-inch throw deadbolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without removing the lock from the door.
Compatible with standard 1-3/8 to 2-1/2 inch door thickness and SFIC products from other manufacturers, this Allegion-backed lock simplifies retrofit installations. For expert guidance on keying options, finishes, and electrified configurations, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Deadbolt: 1 inch throw, stainless steel with hardened steel roller pins
- Latch Bolt: 3/4 inch projection, two-piece stainless steel with anti-friction design
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel
- Cylinders: 5, 6, or 7-pin solid brass available
- Keyways: G keyway standard, A keyway on interchangeable core
- ANSI/BHMA: Meets 156.13 Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Includes: Two nickel silver keys
