Description

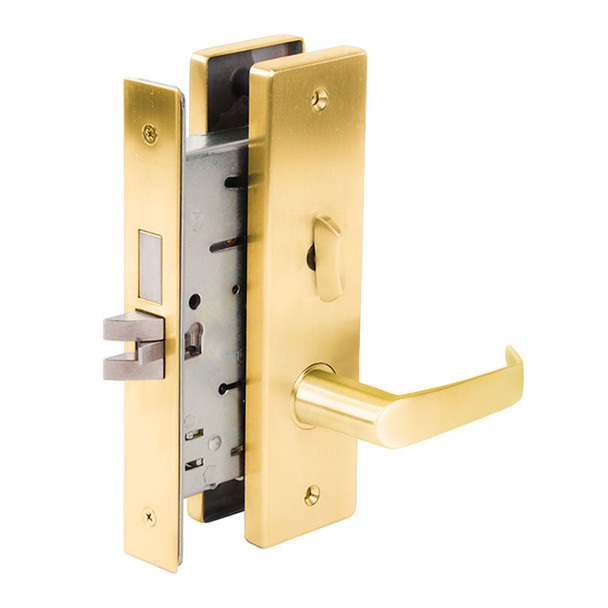

The Falcon MA571B DN 605 is a heavy-duty mortise lock engineered for commercial spaces including offices, hospitals, and educational facilities. It combines security with reliability, featuring a two-piece stainless steel latch bolt, a 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core design for quick re-keying without removing the lock.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and comes standard with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL label. For proper installation, keying options, and compatibility verification with your specific application, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance from an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: MA571B DN 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" diameter hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keys: Two nickel silver keys included standard
- Keyways: G keyway standard on standard cylinder, A keyway standard on interchangeable core
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
- Handing: Right hand standard, left hand optional, reversible in field
