Description

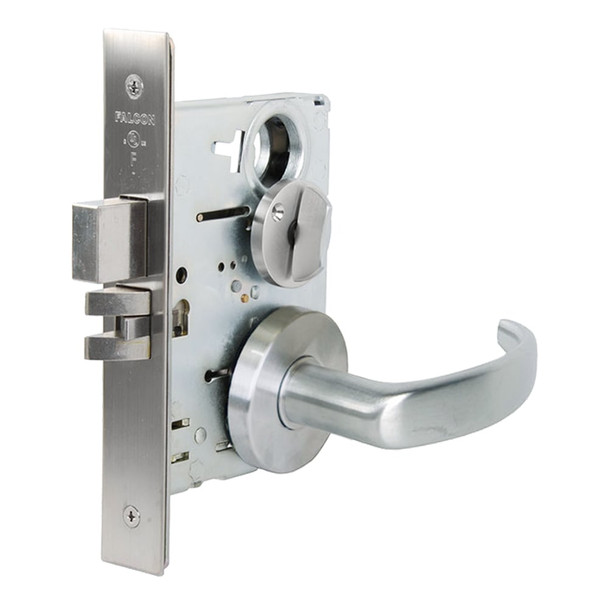

The Falcon MA571B QG 626 is a commercial mortise lock engineered for offices, hospitals, and educational facilities requiring dependable security and durability. This ANSI/BHMA Series 1000 lock features a two-piece stainless steel latch bolt, 1-inch throw dead bolt with saw-resistant rollers, and heavy-duty through-bolted trim for proper alignment under constant use.
The interchangeable core design enables quick re-keying without removing the lock body and maintains compatibility with SFIC products from other manufacturers. Accommodates door thicknesses from 1-3/8 to 2-1/2 inches with 2-3/4 inch backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying options, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for specification details and ordering assistance.
Specifications
- Brand: Falcon
- Model: MA571B QG 626
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard, A keyway on I/C cylinder
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13 Series 1000
- UL: 3 hour A label
