Description

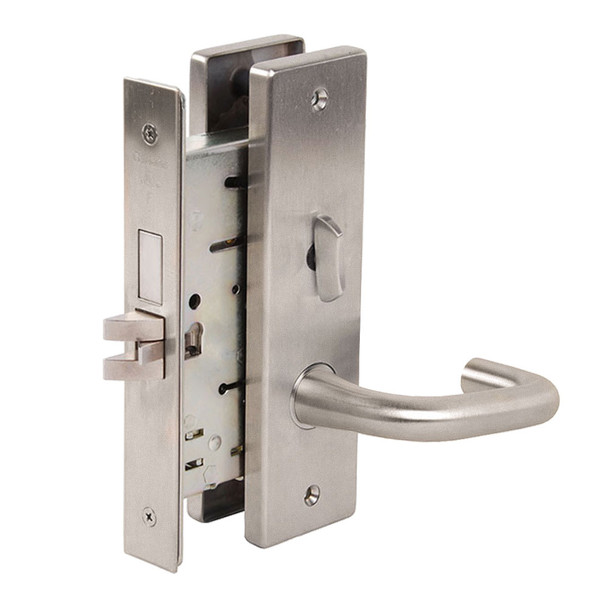

The Falcon MA571B is a commercial mortise lock engineered for offices, hospitals, schools, and other high-traffic facilities. This heavy-duty lock combines reliable security with dependable performance under constant use, featuring a two-piece stainless steel latch bolt and a 1-inch throw deadbolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without removing the lock from the door.
The MA571B accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A standards. It is compatible with SFIC cylinders from other manufacturers and available in 12 or 24 VDC electrified functions. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and finish selection. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for configuration assistance.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G (standard cylinder), A (interchangeable core)
- Electrified: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
