Description

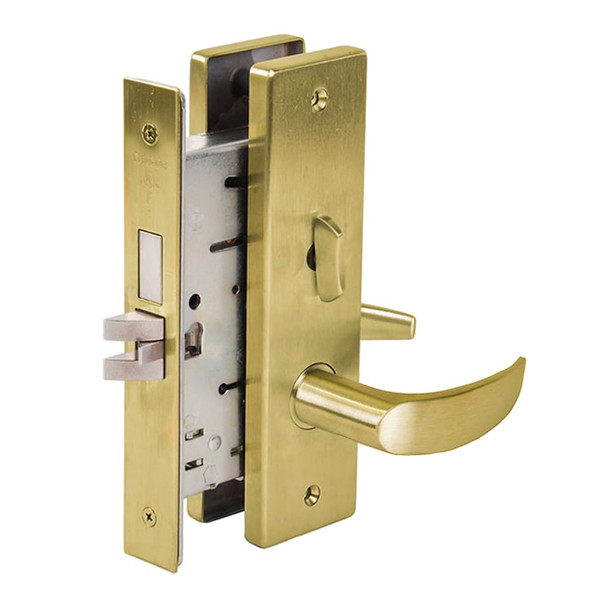

The Falcon MA571P mortise lock delivers high-performance security for commercial offices, hospitals, education facilities, and other demanding environments. Built tough for constant use without failure, this lock features an interchangeable SFIC core for quick re-keying and is compatible with other manufacturers' SFIC products.
Accommodates standard door thickness of 1-3/8" to 2-1/2" with 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing, and electrified function options to match your project needs.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard (standard cylinder); A keyway standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL: 3 hour A label
