Description

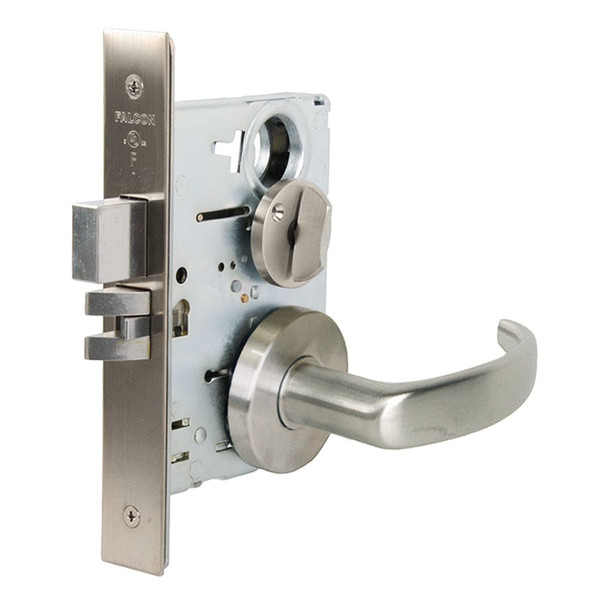

The Falcon MA571P QG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. Built from cold-formed steel with hardened steel components, it delivers reliable security and durability through constant use. The interchangeable core design enables quick re-keying without removing the lock body, reducing downtime and maintenance costs.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards. It is compatible with SFIC products from other manufacturers and available in electrified options (12 or 24 VDC). Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing, and finish selection to ensure the perfect fit for your project.
Specifications
- Brand: Falcon
- Model: MA571P QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keyway: G keyway standard
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
