Description

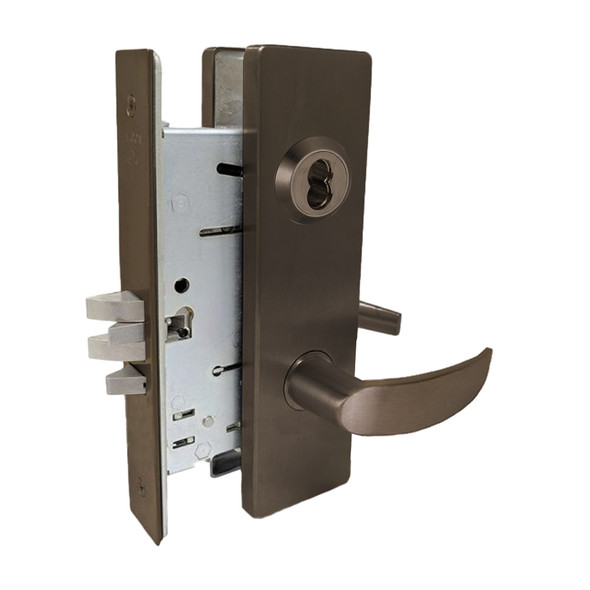

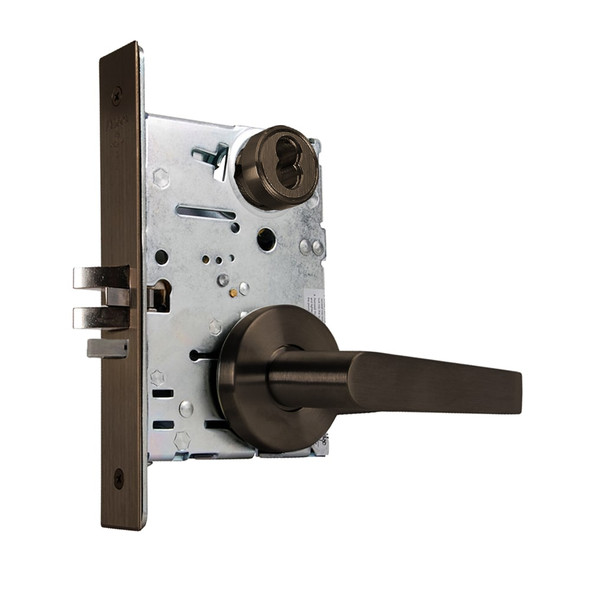

The Falcon MA581B AG 613 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Built for durability and reliability, this Series 1000 lock withstands constant use without fail while offering interchangeable core technology for quick re-keying and retrofit flexibility.
Compatible with standard door thickness of 1-3/8" to 2-1/2" and 2-3/4" backset, the MA581B features a stainless steel latch and dead bolt with saw-resistant rollers. As an authorized Falcon dealer, E.D. Locks provides expert specification assistance and keying guidance. Contact our team at sales@edlocks.com or 1-877-207-6067 for installation support and to confirm your exact requirements.
Specifications
- Brand: Falcon
- Model: MA581B AG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
