Description

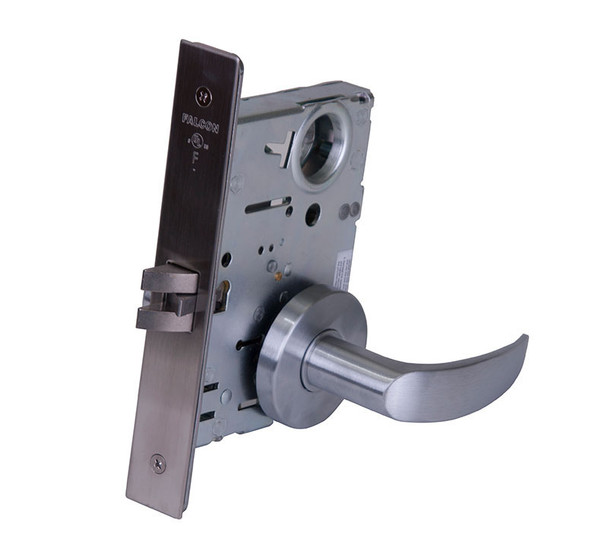

The Falcon MA621B AN 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. It combines security with reliability, featuring a two-piece stainless steel latch bolt, 1-inch throw dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock body.
This lock accommodates standard door thicknesses of 1-3/8 to 2-1/2 inches and accepts SFIC cores from other manufacturers. It's reversible in the field and available in 12 or 24 VDC electrified versions. As an authorized Allegion dealer, E.D. Locks offers expert guidance on keying, installation, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA621B AN 613
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keys Furnished: Two nickel silver keys standard
- Keyways: G keyway standard cylinder; A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with two 13/16 inch diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
