Description

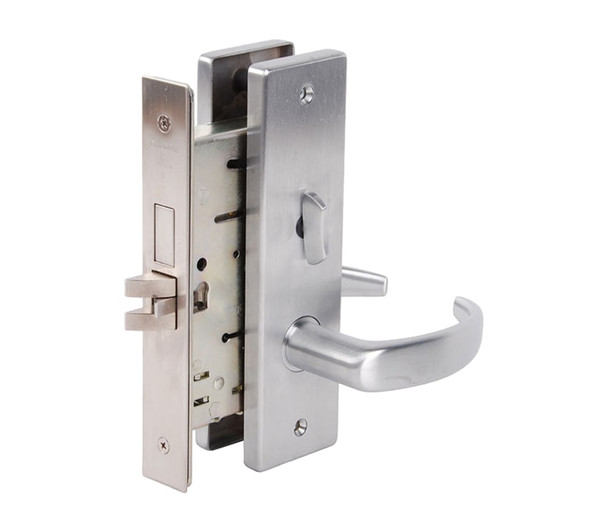

The Falcon MA621B is a commercial mortise lock engineered for high-traffic office, hospital, and educational environments. This dependable lock delivers robust security and durability without premium pricing, featuring a mechanical anti-friction latch and saw-resistant dead bolt that withstand constant daily use.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2", the MA621B accepts interchangeable SFIC cores for quick re-keying and field reversibility. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and full support. Contact sales@edlocks.com or call 1-877-207-6067 with questions.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: G keyway standard, A keyway on I/C
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified Options: 12 or 24 VDC available
