Description

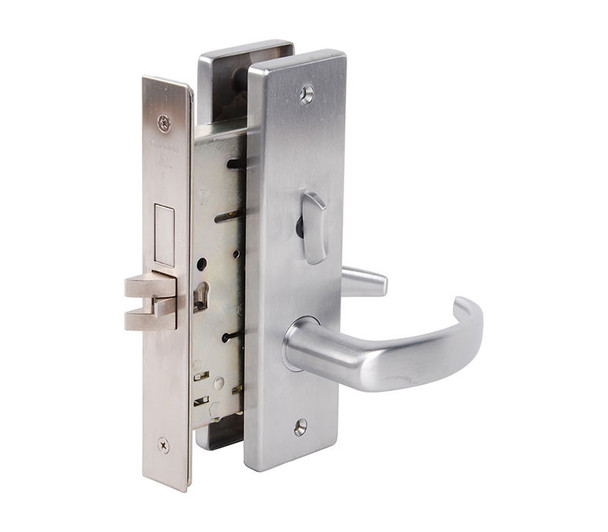

The Falcon MA621CP6 mortise lock is a heavy-duty commercial lock designed for offices, hospitals, and educational facilities requiring reliable security and frequent use. Featuring a two-piece stainless steel latch bolt, 1-inch deadbolt with saw-resistant rollers, and an interchangeable core for quick re-keying, this ANSI/BHMA Series 1000 lock combines affordability with proven performance.
Compatible with doors 1-3/8" to 2-1/2" thick and furnished with two nickel silver keys, the MA621CP6 accommodates 5, 6, or 7-pin cylinders on standard or interchangeable core options. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA621CP6 QN 630
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: "G" standard (standard cylinder); "A" standard (interchangeable core)
- Finish: QN 630
- ANSI/BHMA: Series 1000, meets ANSI/BHMA 156.13
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Strike: Brass or stainless steel, meets ANSI A115.1
- Includes: Two nickel silver keys
