Description

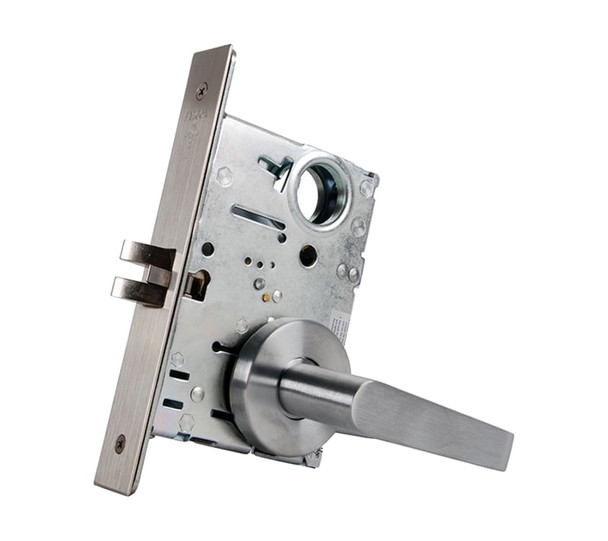

The Falcon MA621L DG 606 mortise lock is a high-performance security solution for commercial buildings including offices, hospitals, and educational facilities. This dependable lock combines affordability with durability, engineered to withstand constant use without fail. Its interchangeable core design enables quick re-keying and is compatible with SFIC products from other manufacturers.
Accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards for reliable performance. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying options, and specification selection. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA621L DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin available
- Keyway: "G" keyway standard
- Handing: Right hand standard, left hand optional, reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
