Description

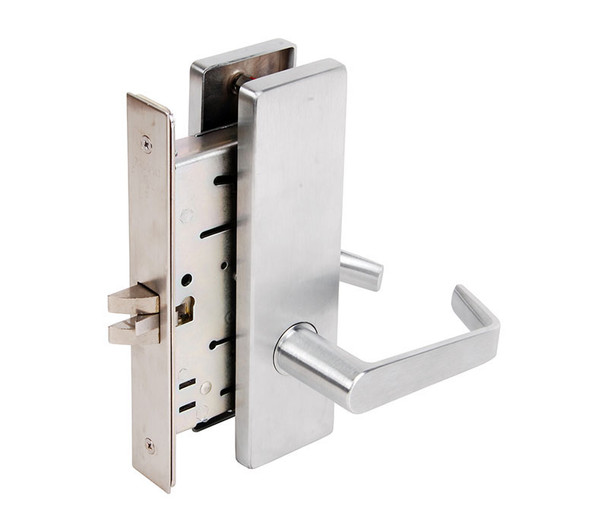

The Falcon MA621L DN 606 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a 1-inch stainless steel deadbolt with saw-resistant rollers and a two-piece anti-friction latch bolt. The interchangeable core (SFIC compatible) enables fast re-keying without removing the lock body.
The MA621L accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field for left or right-hand installation. Compatible with 12 or 24 VDC electrified functions and rated for 3-hour A-label fire doors, this lock meets ANSI/BHMA 156.13 standards. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying, handing, and finish guidance from an authorized Allegion dealer.
Specifications
- Brand: Falcon
- Model: MA621L DN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Keys: Two nickel silver keys standard
