Description

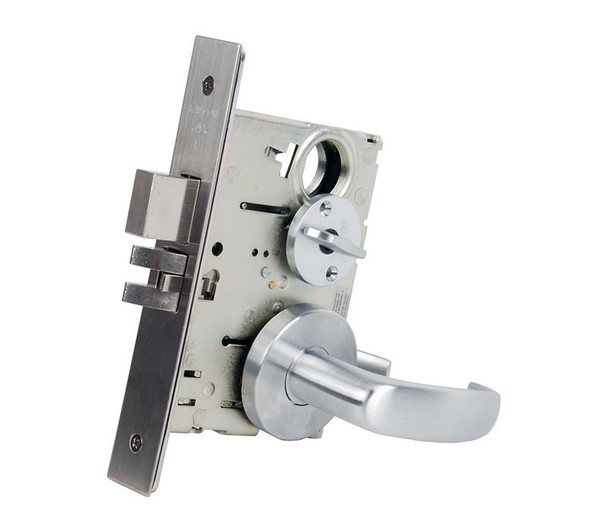

The Falcon MA621L QG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This ANSI/BHMA Series 1000 lock combines dependable security with an interchangeable core design that simplifies re-keying and maintenance, reducing downtime and total cost of ownership for facility managers.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and a 2-3/4" backset, this lock features a 1" throw deadbolt with saw-resistant rollers and a 3/4" stainless steel latch. Right-hand handing ships standard; left-hand and field-reversibility are available. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, and expert installation guidance.
Specifications
- Brand: Falcon
- Model: MA621L QG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt Throw: 1", stainless steel with saw-resistant rollers
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard (A keyway on I/C cylinder)
- Hubs: Hardened steel
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Handing: Right hand standard; left hand optional and field-reversible
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
