Description

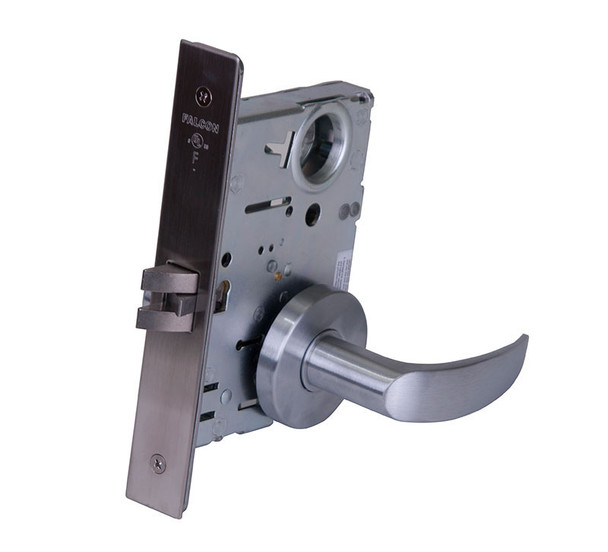

The Falcon MA621P AG 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock body, while the two-piece stainless steel latch and saw-resistant roller bolts deliver dependable security through years of constant use.
This lock accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. Compatible with SFIC products, it's available in multiple finishes and keying options. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on installation, handing, or keying configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible options available
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder); A keyway (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
