Description

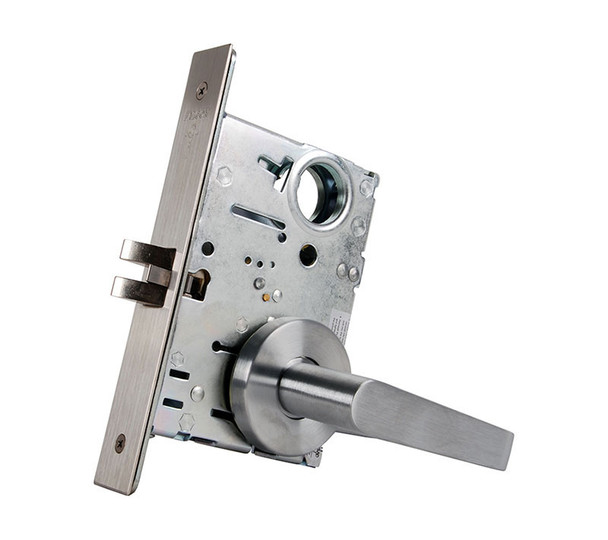

The Falcon MA621P DG 605 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This dependable lock combines security with durability to withstand constant daily use. It features an interchangeable core for easy re-keying and works with SFIC products from other manufacturers, making retrofits straightforward.
The MA621P accommodates standard door thickness of 1-3/8" to 2-1/2" and comes furnished with two nickel silver keys. As an authorized Falcon dealer, E.D. Locks offers expert guidance on installation, keying options, and electrified functions. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and to verify compatibility with your project requirements.
Specifications
- Brand: Falcon
- Model: MA621P DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8", brass or stainless steel
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Handing: Right hand standard, left hand optional, reversible in field
