Description

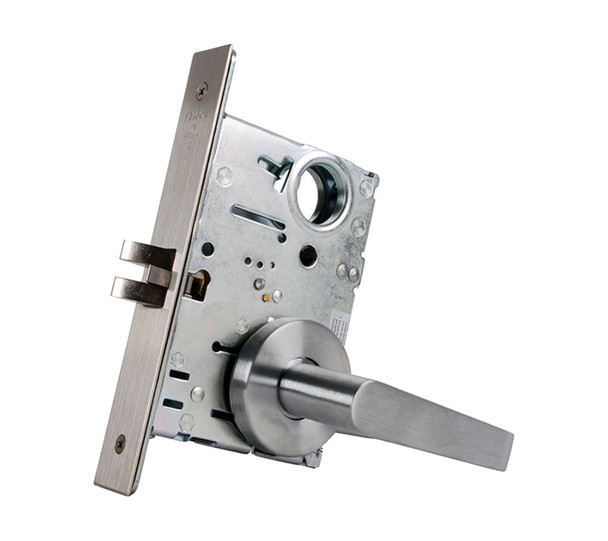

The Falcon MA641B DG 613 is a high-performance mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design allows quick re-keying without removing the lock, while the two-piece stainless steel latch and anti-friction bolt deliver dependable security and smooth operation under constant use.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards with a 3-hour UL A label rating. The SFIC-compatible core works with cylinders from other manufacturers. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified configurations, and installation support.
Specifications
- Brand: Falcon
- Model: MA641B DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Cylinder Options: 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard cylinder, "A" interchangeable core
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
