Description

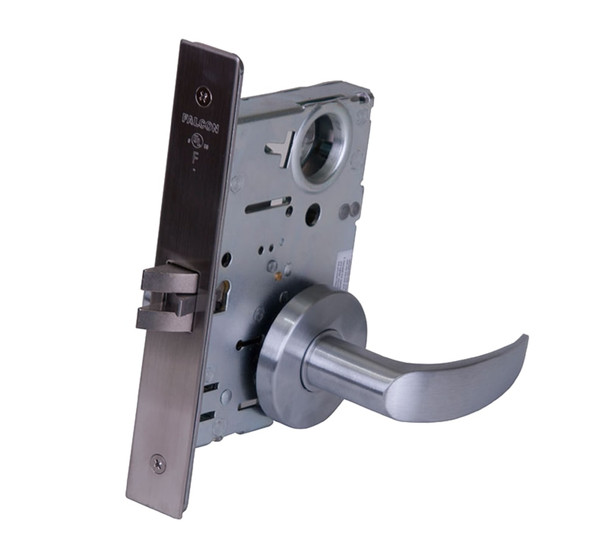

The Falcon MA641CP6 AG 630 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a stainless steel latch bolt, 1-inch deadbolt with saw-resistant rollers, and cold-formed steel construction built to withstand constant use without compromise.
The interchangeable core design enables quick re-keying and works with SFIC products from other manufacturers. It accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is available in right or left hand, reversible in the field. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on installation, keying options, and electrified function availability (12 or 24 VDC).
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Cylinders: 5, 6 or 7-pin available (6 or 7-pin on interchangeable core)
- Standard Keyway: G keyway on standard cylinder, A keyway on I/C cylinder
- Handing: Right hand standard, left hand optional, reversible in field
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
