Description

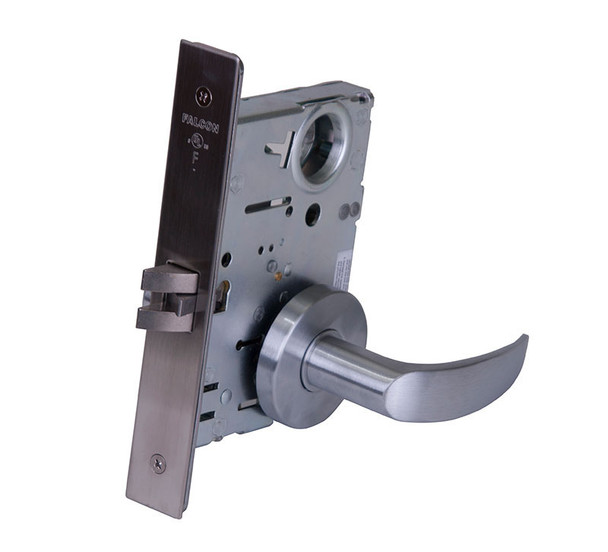

The Falcon MA641P AG 613 is a heavy-duty mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. This dependable lock combines security with durability, designed to withstand constant use without fail. The interchangeable core simplifies maintenance and re-keying while remaining compatible with SFIC products from other manufacturers.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards. Reversible handing allows field adjustment for left or right-hand operation. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified configurations, and installation support from an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: MA641P AG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Keys: Two nickel silver keys standard
