Description

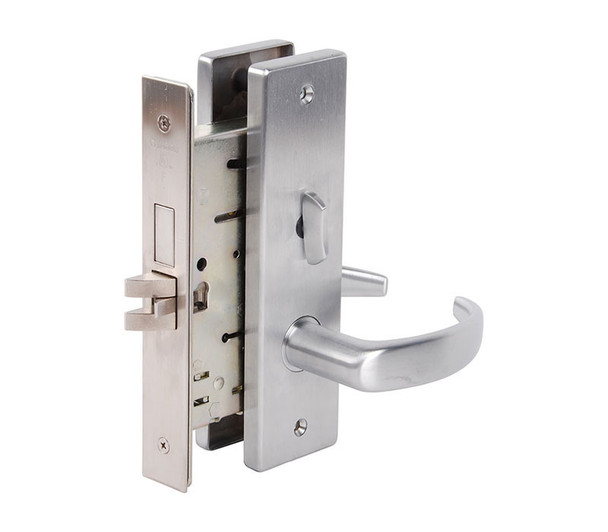

The Falcon MA641P mortise lock delivers commercial-grade security and durability for offices, hospitals, educational facilities, and other high-traffic environments. Built to withstand constant use without failure, this Series 1000 lock combines reliable performance with an affordable price point, making it ideal for retrofit projects and new installations where dependable access control matters.
The MA641P features an interchangeable core (SFIC compatible) for quick re-keying, accommodates door thicknesses from 1-3/8" to 2-1/2", and comes standard with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Brand: Falcon (Allegion)
- Model: MA641P QN 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard, 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Includes: Two nickel silver keys standard
