Description

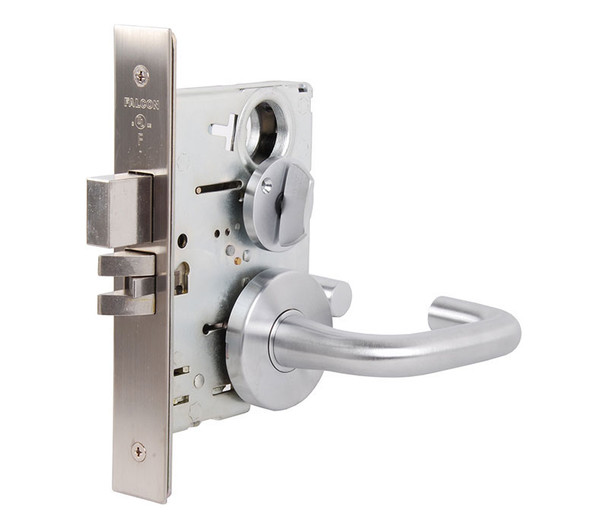

The Falcon MA641P SG 630 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a mechanical anti-friction latch bolt, saw-resistant rollers, and interchangeable core capability for convenient re-keying without removing the lock body.
The MA641P accommodates standard door thickness of 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. Compatible with SFIC products and backed by Allegion quality, this lock is built for constant use. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and electrified options.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for interchangeable core
- Keyway: G keyway standard; A keyway for I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard; left hand optional, reversible in field
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
