Description
The Marks USA 175 Economy Series cylindrical leverset delivers Grade 1 performance at a Grade 2 price point, ideal for schools, universities, offices, hospitals and other commercial facilities. This UL-listed lockset meets ADA requirements and features solid cast Zamac levers with spring-loaded thru-bolted roses, available in Satin Chrome or Oil Rubbed Bronze finish.
Compatible with standard 1-5/8" to 1-7/8" doors and includes a MARKS "C" keyway cylinder with 6 pins and 2 keys. The clutch feature allows the outside lever to turn when locked without retracting the latch. Multiple functions are available (Passage, Entrance, Storeroom, Privacy, Classroom, Exit). Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for specification matching, keying assistance, and to leverage our authorized dealer expertise.
Specifications
- Backset: 2-3/4"
- Latch: #1134
- Front: 1-1/8" x 2-1/4"
- Levers: Solid cast Zamac with 1/2" return
- Roses: Thru-bolted, spring loaded, 2-#10 thru-bolts (inside rose cover included)
- Strike: #1145/32D
- Door thickness: 1-5/8" to 1-7/8"
- Cylinder: MARKS "C" keyway, 6 pin with 2 keys
- Finishes: Satin Chrome, Oil Rubbed Bronze

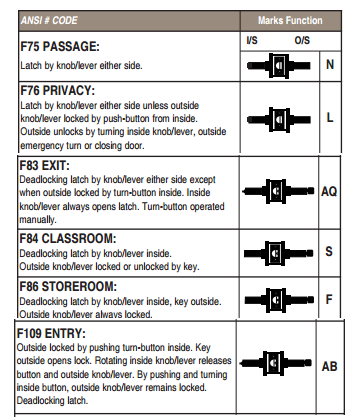

- Functions: Passage (175N), Entrance (175AB), Storeroom (175F), Privacy (175L), Classroom (175S), Exit (175AQ)
- Warranty: Marks Lifetime Mechanical Warranty
