Description
Standard Features
- ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
- Backset: 2-3/4" Standard
- Latch #1834, stainless steel nose
- Levers: Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position
- Levers recessed into solid stainless steel roses eliminating any open gap
- Roses: Thru-bolted, spring loaded, #10 thru-bolts
- Strike: #1135, 4-7/8" ASA curved lip strike
- Door thickness: 1-3/4" +/- 1/16"
- Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
- Stainless steel retractor
Models Available
- 195SSAB-32D: Entrance
- 195SSL-32D: Privacy
- 195SSN-32D: Passage
- 195SSS-32D:Classroom

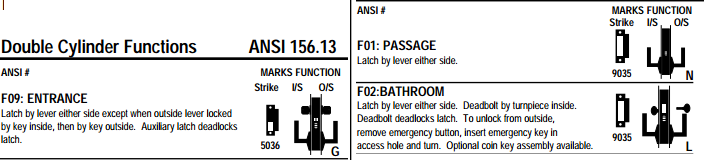

Functions
Dimensions
