Description

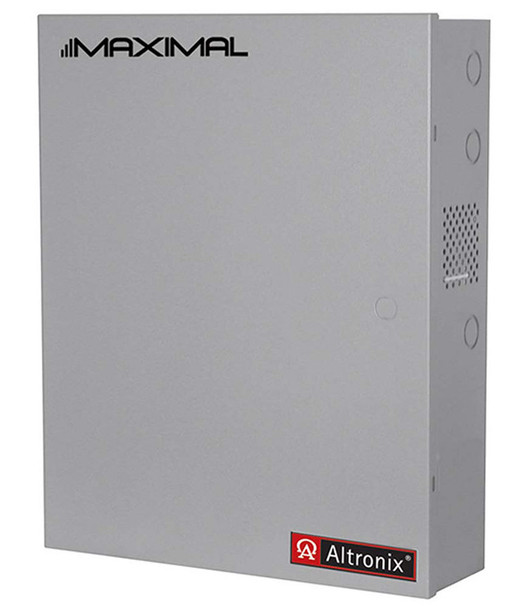

The Altronix Maximal77 is a 16-output power distribution and switching unit designed for access control systems and security installations. It converts 115VAC 60Hz input to sixteen independently controlled 24VDC fuse-protected outputs, perfect for facilities integrating mag locks, electric strikes, magnetic door holders, and other access control devices.
Each output supports Fail-Safe/Fail-Secure operation and can be triggered by access control systems, keypads, push buttons, or PIR sensors. The unit includes FACP interface capability for emergency egress and alarm monitoring, plus selectable fire alarm disconnect for any output. As an authorized Altronix dealer, E.D. Locks provides expert installation guidance and technical support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Input: 115VAC 60Hz
- Outputs: 16x 24VDC independently controlled
- Output Protection: Individual fuses
- Trigger Input: Open collector sink or normally open (NO) dry contact
- Output Form: Fail-Safe/Fail-Secure, convertible to dry form C contacts
- Fire Alarm Disconnect: Individually selectable per output
- Compatible Devices: Mag locks, electric strikes, magnetic door holders, CCTV, fire alarm, PoIP systems
