Description

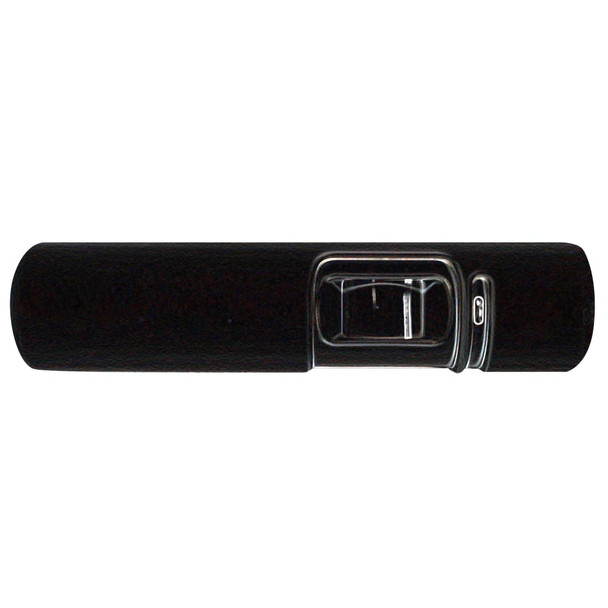

The SDC MD-31DB is a passive infrared motion detector engineered for request-to-exit applications in access control systems. It features an adjustable 1-60 second time delay and internally pointable coverage field, solving the need for reliable, tamper-resistant occupant detection at doorways and controlled exits.
Mount this sensor to frame header, wall, or ceiling; coverage ranges from 5x6 feet at 7 feet high to 10x12 feet at 15 feet high when angled 14.25 degrees downward. Its U-pattern projection inhibits bypassing and complies with NFPA standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert integration guidance and system compatibility support.
Specifications
- Brand: SDC
- Model: MD-31DB
- Sensor Type: Passive Infrared (PIR)
- Application: Request-to-Exit
- Time Delay: Adjustable 1-60 seconds
- Coverage Field: Internally pointable
- Coverage Range: 5x6 feet at 7 feet high; 10x12 feet at 15 feet high (at 14.25 degree angle)
- Mounting: Frame header, wall, or ceiling
- Pattern: Wrap-around U pattern
- Compliance: NFPA applications
