Description

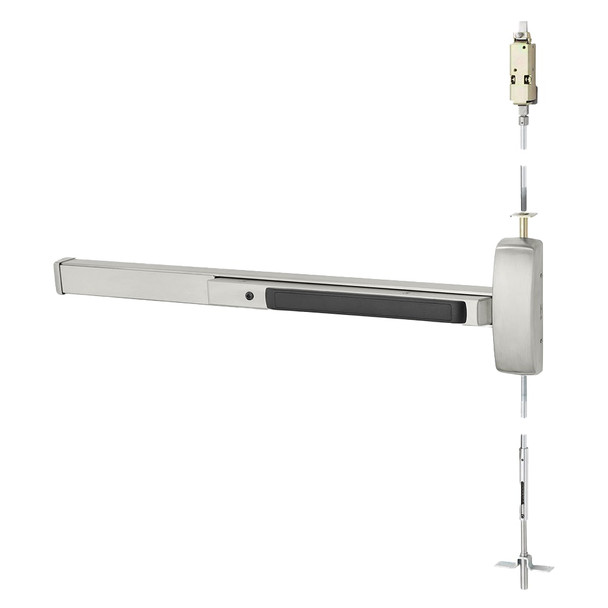

The Sargent MD8673G-12V ETF RHR 32D is a Grade 1 rim exit device engineered for metal doors requiring heavy-duty security and reliability. Ideal for commercial buildings, schools, and facilities with strict code compliance needs, this 12-volt electric latch retraction model delivers maintenance-free operation and unsurpassed durability throughout the building's lifetime.
This right-hand reverse (RHR) device fits 1 3/4" minimum metal doors and installs with supplied machine screws and stainless steel top bolt at 41" from finished floor. The F-rail suits 33" to 36" door widths, factory-cut to specification. As an authorized Sargent dealer, E.D. Locks provides expert guidance on strike selection, rail sizing, and code compliance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for sizing assistance and faster fulfillment.
Specifications
- Brand: Sargent
- Model: MD8673G-12V ETF RHR 32D
- Type: Rim Exit Device, Electric Latch Retraction
- Function: Right-Hand Reverse (RHR)
- Rail: F-Rail (33" to 36" door widths, no cutting required for 36")
- Voltage: 12V
- Door Thickness: 1 3/4" minimum
- Door Width: 33" to 36"
- Device Centerline: 41" from finished floor
- Center Case Dimensions: 8 3/8" H x 2 5/8" W
- Pushbar Projection: 3" (neutral), 2 1/8" (depressed)
- Top Bolt: Stainless steel
- Strikes: 650 Top Strike & 606 Bottom Strike (panic and fire-rated)
- Fasteners: Machine screws supplied
- Dogging: Hex key standard on non-fire-rated devices
- Rating: ANSI/BHMA Grade 1
