Description

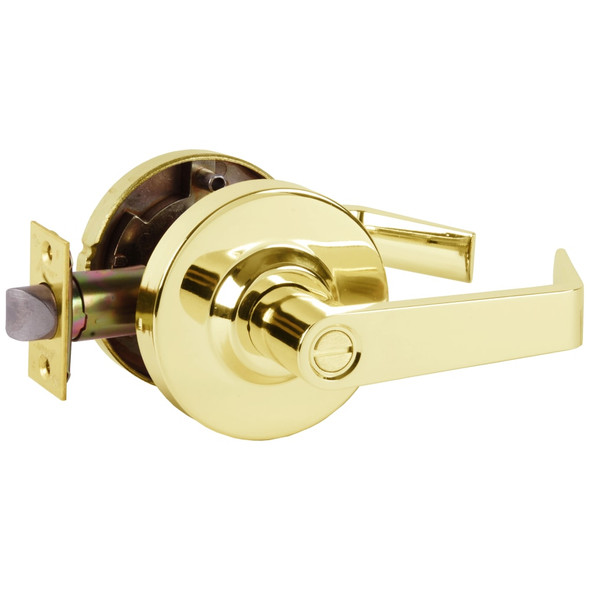

The Arrow MLX02-SR-BSP is a Grade 2 cylindrical lockset designed for commercial doors requiring reliable, abuse-resistant security. Its free wheeling lever absorbs impact, making it ideal for high-traffic entries, stairwells, and institutional settings where durability matters. Quick two-screw installation and a 10-year mechanical warranty provide long-term value.
This lockset fits standard 2-1/8" bore holes and works on doors 1-3/8" to 1-3/4" thick with a 2-3/4" backset. It accepts both Arrow AR and Schlage CS keyways and comes keyed different with 2 brass keys. As an authorized Arrow dealer, E.D. Locks offers expert guidance on handing, compatibility, and keying options. Contact sales@edlocks.com or call 1-877-207-6067 for free technical support.
Specifications
- Brand: Arrow
- Model: MLX02-SR-BSP
- Grade: 2
- Bore Size: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door Thickness: 1-3/8" to 1-3/4" (34.93mm to 44.45mm)
- Latch Material: Stainless Steel
- Latch Throw: 1/2" (12.7mm)
- Latch Front: 1-1/8" x 2-1/4"
- Lever Length: 4-3/4" (120.65mm)
- Rose Diameter: 3-11/32" (84.8mm)
- Total Projection: 2-17/32" (64.5mm)
- Strike: 4-7/8" ANSI (123.83mm)
- Cylinder: Solid brass, 6 pin
- Keyways: Arrow AR, Schlage CS
- Handing: Non-handed
- Warranty: 10 Years Mechanical
- Keys Included: 2 brass keys
- Package Quantity: 6 per case
