Description

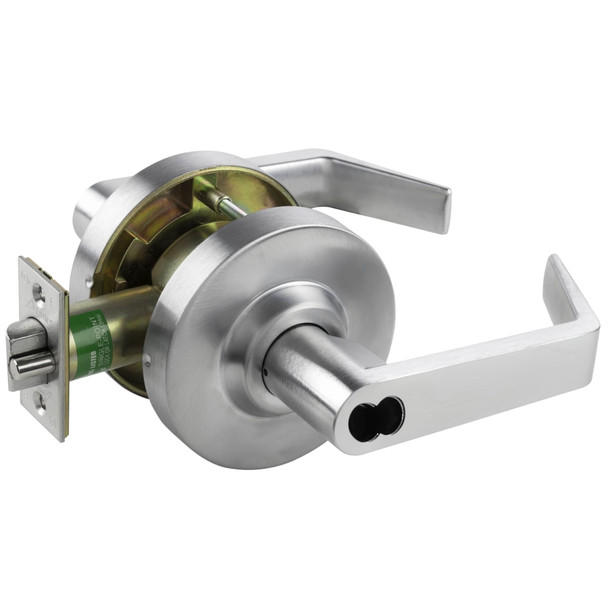

The Arrow MLX93 is a Grade 2 cylindrical lockset designed for commercial doors needing reliable, abuse-resistant security. Its Free Wheeling Lever technology and two-screw installation make it ideal for facilities upgrading or replacing existing locksets in high-traffic environments.
This non-handed lock fits standard 1-3/8" to 1-3/4" doors with 2-1/8" bore and 2-3/4" backset. It accepts Arrow AR and Schlage CS keyways with solid brass 6-pin cylinders. As an authorized Arrow dealer, E.D. Locks provides expert keying assistance and application support at sales@edlocks.com or 1-877-207-6067 to ensure proper fit and function.
Specifications
- Grade 2 lockset with Free Wheeling Lever
- Door bore: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door thickness: 1-3/8" to 1-3/4"
- Latch: Stainless steel, 1/2" throw, UL Listed
- Latch front: 1-1/8" x 2-1/4"
- Lever: Pressure cast zinc, 4-3/4" length
- Roses: Wrought brass, 3-11/32" diameter
- Door projection: 2-17/32"
- Cylinder: Solid brass, 6-pin
- Keyways: Arrow AR and Schlage CS
- Handing: Non-handed
- Strike: 4-7/8" ANSI
- Includes: 2 brass keys
- Warranty: 10 years mechanical
- Packaging: 6 per case
