Description

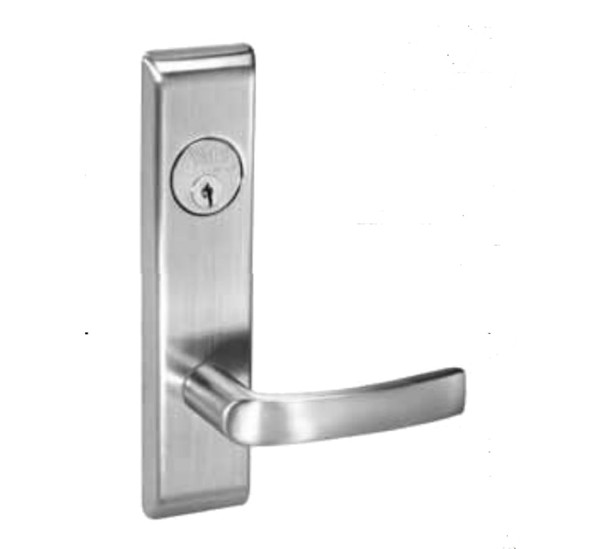

The Yale 8800 Series Mortise Lock Trim Pack is a heavy-duty commercial mortise lock designed for applications requiring ANSI/BHMA Grade 1 strength and security. Built with a reinforced stainless steel deadbolt and vandal-resistant trim, this lock solves durability and security concerns in high-traffic commercial doors, offering quick lever handing and field-reversible installation for contractor flexibility.
This trim pack fits standard 1-3/4" doors and is compatible with 6-pin keyed-random cylinders (7-pin available to order). The field-reversible handing and standard nonhanded strike simplify installation. As an authorized Yale dealer, E.D. Locks provides expert support to ensure correct specification and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance with your commercial security needs.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating to adjust 0 to 1/8" in 2"
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available to order)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available)
- Finishes: Available in 17 commercial finishes
- Warranty: 10 year mechanical
