Description

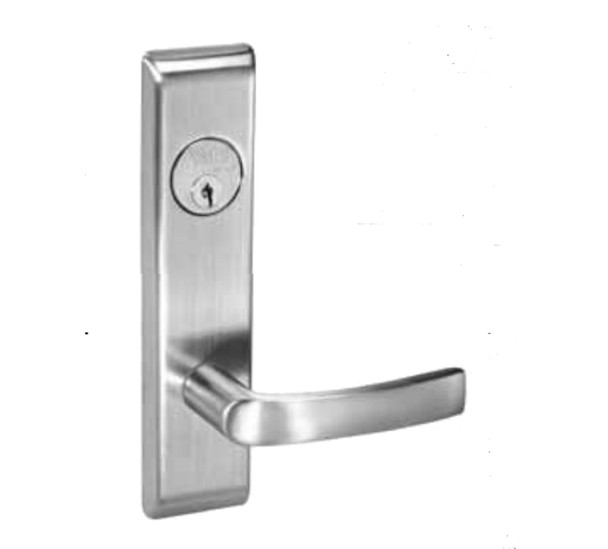

The Yale 8800 Series mortise lock trim pack is a commercial-grade locking solution designed for applications demanding uncompromising strength and durability. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible handing to solve installation challenges and reduce labor costs on new construction and retrofit projects.
The MOCN8809FL trim pack fits standard 1-3/4 inch doors and includes a 6-pin keyed-random cylinder with two keys. UL/cUL fire-rated up to 3 hours and backed by a 10-year mechanical warranty, this lock is built for long-term reliability. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finishes, keying options, and compatibility with your specific door and frame requirements.
Specifications
- ANSI/BHMA Certified: Grade 1, A156.13 Series 1000
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard (up to 3-1/4 inch available)
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random with 2 keys standard
- Handing: Field reversible
- Strike: 1-1/4 inch curved lip for 1-3/4 inch door standard
- Finishes: 17 available
- Warranty: 10 year mechanical
