Description

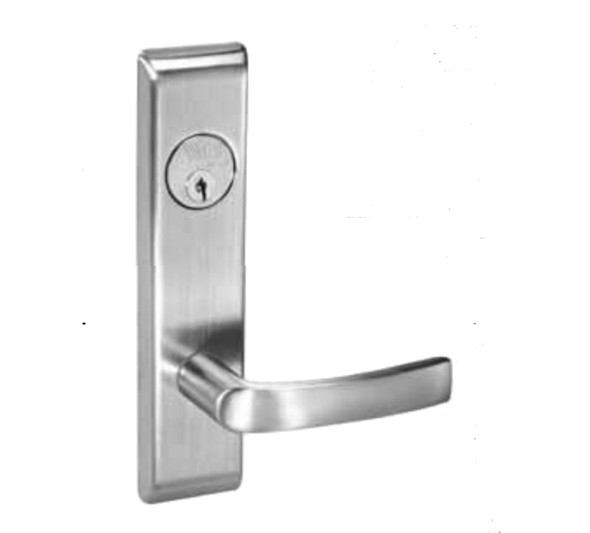

The Yale 8800 Series mortise lock delivers commercial-grade security for offices, retail, and institutional buildings. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and 3/4 inch throw for maximum protection. Field reversible handing and quick lever installation save time on the job.
Compatible with standard 1-3/4 inch doors and adjustable to 3-1/4 inch thick doors. Includes a 6-pin keyed-random cylinder with two keys; 7-pin cylinders available upon request. As an authorized Yale dealer, E.D. Locks provides expert guidance on mortise lock selection, keying options, and installation support. Call 1-877-207-6067 or email sales@edlocks.com for assistance.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard, up to 3-1/4 inch available
- Cylinder: Brass, 6-pin keyed-random (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4 inch curved lip for 1-3/4 inch doors standard
- Finishes: 17 available options
- Warranty: 10 year mechanical
