Description

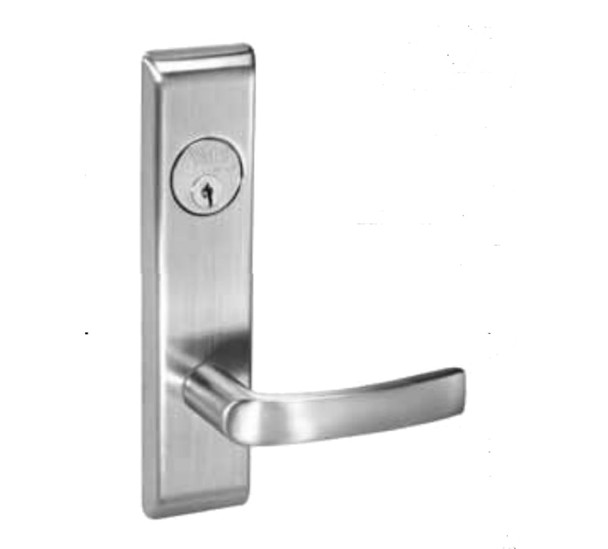

The Yale MOCN8862FL mortise lock trim pack is built for high-security commercial applications requiring ANSI/BHMA Grade 1 strength and durability. Featuring reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing, this lock solves the challenge of securing busy commercial doors while simplifying installation and maintenance.
This trim pack fits standard 1-3/4" doors and works with Yale's proven 8800 Series mortise lock body. All Yale commercial locks from E.D. Locks come backed by expert support: contact sales@edlocks.com or 1-877-207-6067 for handing questions, finish selection, or ordering options like 7-pin cylinders and custom door thicknesses. As an authorized dealer, we ensure you get the right spec and installation guidance every time.
Specifications
- Brand: Yale/Accentra
- Series: 8800 Mortise Lock
- Finish: 625 (Satin Chrome)
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating 0 to 1/8" in 2"
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Handing: Field reversible
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths by special order)
- Warranty: 10 year mechanical
