Description

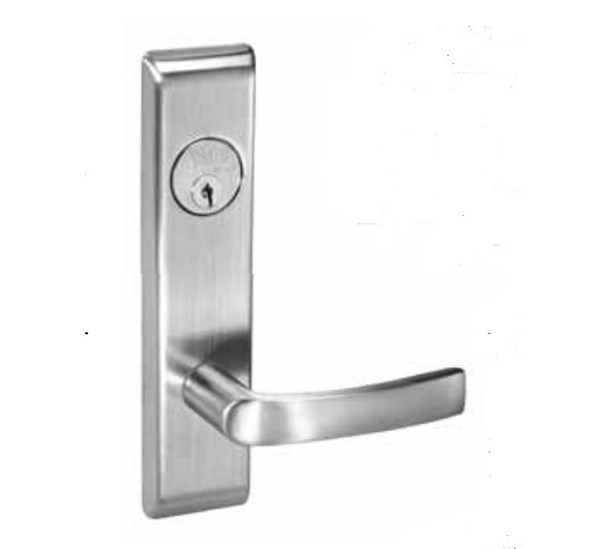

The Yale 8862FL 625 is a heavy-duty mortise lock engineered for commercial buildings, healthcare facilities, and high-traffic environments where security and durability are non-negotiable. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and UL fire-rating up to 3 hours, solving security and safety challenges in demanding applications.
The 8862FL installs in standard 1-3/4" doors and is field-reversible for flexible handing without special ordering. It accepts industry-standard cylinders and includes a curved lip strike for 1-3/4" doors. As an authorized Yale dealer, E.D. Locks provides expert product matching, finish selection, and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for technical guidance or to verify compatibility with your project.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Standard Door Thickness: 1-3/4" (to 3-1/4" available to order)
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinders: Brass, 6-pin keyed-random with 2 keys (7-pin available)
- Strikes: 1-1/4" curved lip for 1-3/4" door (reversible)
- Field Reversible: Yes
- Finishes: 17 available
- Warranty: 10 years mechanical
