Description

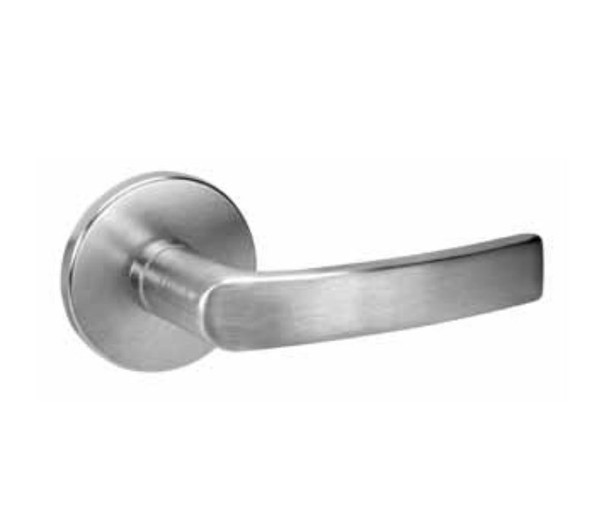

The Yale 8800 Series MOR8802FL mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors requiring uncompromising strength. Built with a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and UL/cUL fire rating up to 3 hours, this lock suits high-traffic entrances, office buildings, and institutional applications where durability matters.
This mortise lock fits standard 1-3/4" doors and features field-reversible handing for flexible installation. The 6-pin keyed-random cylinder comes with two keys; keying and compatibility questions are best directed to our experts at sales@edlocks.com or 1-877-207-6067. As an authorized Yale dealer, we ensure you receive genuine hardware backed by Yale's 10-year mechanical warranty and full technical support.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinder: Brass, 6-pin, keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" doors (other lengths to order)
- Finishes: 17 available
- Warranty: 10 years mechanical
